MMM API Migration Guide

This guide helps you migrate from the old MMM class (pymc_marketing.mmm.MMM) to the new multidimensional MMM class (pymc_marketing.mmm.multidimensional.MMM).

Why Migrate?

The new MMM class provides several improvements:

• Multidimensional Support: Native support for hierarchical and multidimensional models

• Cleaner API: More explicit model building steps with better separation of concerns

• Flexible Priors: Choose between total pooling (shared parameters) or channel-specific priors

• Enhanced Plotting: Reorganized plotting API under mmm.plot.* namespace

• Improved Budget Optimization: New wrapper class for more flexible optimization scenarios

This guide covers all API changes with side-by-side code comparisons to make your migration straightforward.

1. Import Path Change

The primary import path has changed:

Old:

from pymc_marketing.mmm import MMM

New:

from pymc_marketing.mmm.multidimensional import MMM

The new class is imported from the multidimensional submodule during the migration. From version 0.20.0 onwards, the new class is imported from the root pymc_marketing.mmm.MMM module.

from pymc_extras.prior import Prior

from pymc_marketing.mmm import MMM as MMM_old
from pymc_marketing.mmm import GeometricAdstock, LogisticSaturation
from pymc_marketing.mmm.multidimensional import MMM as MMM_new

2. Model Initialization & Model Config Defaults

The new MMM class initializes is the same as the old one. However, note that the default priors have changed! For the old model we had implicit channel-specific priors, but now we have total pooling by default.

mmm_old = MMM_old(
    date_column="date_week",
    channel_columns=["x1", "x2"],
    adstock=GeometricAdstock(l_max=8),
    saturation=LogisticSaturation(),
)

mmm_old.model_config

{'intercept': Prior("Normal", mu=0, sigma=2),
 'likelihood': Prior("Normal", sigma=Prior("HalfNormal", sigma=2)),
 'gamma_control': Prior("Normal", mu=0, sigma=2, dims="control"),
 'gamma_fourier': Prior("Laplace", mu=0, b=1, dims="fourier_mode"),
 'adstock_alpha': Prior("Beta", alpha=1, beta=3, dims="channel"),
 'saturation_lam': Prior("Gamma", alpha=3, beta=1, dims="channel"),
 'saturation_beta': Prior("HalfNormal", sigma=2, dims="channel")}

mmm_new = MMM_new(
    date_column="date_week",
    channel_columns=["x1", "x2"],
    adstock=GeometricAdstock(l_max=8),
    saturation=LogisticSaturation(),
)

mmm_new.model_config

{'intercept': Prior("Normal", mu=0, sigma=2),
 'likelihood': Prior("Normal", sigma=Prior("HalfNormal", sigma=2)),
 'gamma_control': Prior("Normal", mu=0, sigma=2, dims="control"),
 'gamma_fourier': Prior("Laplace", mu=0, b=1, dims="fourier_mode"),
 'adstock_alpha': Prior("Beta", alpha=1, beta=3),
 'saturation_lam': Prior("Gamma", alpha=3, beta=1),
 'saturation_beta': Prior("HalfNormal", sigma=2)}

You can explicitly specify the model config for just these variables to get the old behavior.

my_model_config = {
    "adstock_alpha": Prior("Beta", alpha=1, beta=3, dims="channel"),
    "saturation_lam": Prior("Gamma", alpha=3, beta=1, dims="channel"),
    "saturation_beta": Prior("HalfNormal", sigma=2, dims="channel"),
}

mmm_new = MMM_new(
    date_column="date_week",
    channel_columns=["x1", "x2"],
    adstock=GeometricAdstock(l_max=8),
    saturation=LogisticSaturation(),
    model_config=my_model_config,
)

mmm_new.model_config == mmm_old.model_config

True

When to Use Each Approach

Approach	Use Case
Total Pooling (new default)	When you expect similar adstock/saturation behavior across channels, or have limited data per channel
Channel-Specific	When channels have fundamentally different response characteristics (e.g., TV vs. digital)

3. Adding Original Scale Variables to the Inference Data

The new API allows you to store variable contribution in the original scale in the inference data attribute.

mmm = MMM(...)

# Step 1: Build the model explicitly
mmm.build_model(X_train, y_train)

# Step 2: Add original scale contribution variables (optional but recommended)
mmm.add_original_scale_contribution_variable(var=["channel_contribution", "y"])

# Step 3: Fit the model
mmm.fit(X_train, y_train)

Why add_original_scale_contribution_variable()?

This method stores unscaled (original scale) contribution variables in idata["posterior"]. This is particularly useful when:

• You want to analyze contributions in the original units (dollars, impressions, etc.)

• You need to compare contributions across different scales

Without this call, you would need to manually reverse the scaling transformation during analysis.

4. Parameter Naming Changes

Some internal parameter names have changed. Update your code if you access parameters directly:

Old Name	New Name
intercept	intercept_contribution

Example:

# Old
az.summary(mmm.fit_result, var_names=["intercept"])

# New
az.summary(mmm.fit_result, var_names=["intercept_contribution"])

5. Plotting API Changes

New Access Pattern

Plotting functions are now accessed through the plot attribute:

Old:

mmm.plot_prior_predictive(...)
mmm.plot_posterior_predictive(...)

New:

mmm.plot.prior_predictive(...)
mmm.plot.posterior_predictive(...)

Renamed Functions

Several plotting functions have been renamed for clarity:

Old Function	New Function
plot_components_contributions	plot.contributions_over_time
plot_direct_contribution_curves	plot.saturation_scatterplot
plot_channel_contribution_grid	plot.sensitivity_analysis

Examples

Contributions over time:

# Old
fig = mmm.plot_components_contributions(original_scale=True)

# New
fig = mmm.plot.contributions_over_time()

Saturation curves:

# Old
fig = mmm.plot_direct_contribution_curves()

# New
fig = mmm.plot.saturation_scatterplot()

Channel-Specific Parameter Plots

For channel-specific parameters, use ArviZ directly:

import arviz as az

# Plot posterior for channel-specific parameters
az.plot_posterior(
    mmm.fit_result,
    var_names=["adstock_alpha", "saturation_lam"],
    coords={"channel": mmm.channel_columns}
)

6. Sensitivity Analysis Workflow

Sensitivity analysis now follows a two-step process, separating computation from visualization.

Old Approach (Single Function)

# Old - computation and plotting combined
fig = mmm.plot_channel_contribution_grid(start=0, stop=1.5, num=12)

New Approach (Two Steps)

import numpy as np

# Step 1: Run the sensitivity sweep (stores results in idata)
mmm.sensitivity.run_sweep(
    sweep_values=np.linspace(0, 1.5, 12),
    var_name="channel_contribution",
)

# Step 2: Visualize the results
fig = mmm.plot.sensitivity_analysis()

Benefits of the New Approach

1. Reusable Results: Sweep results are stored in idata["sensitivity_analysis"] and can be accessed later

2. Flexible Visualization: Plot the same results in different ways without re-running the sweep

3. Custom Analysis: Access raw sweep results for custom analysis:

# Access sensitivity results directly
sensitivity_data = mmm.idata["sensitivity_analysis"]

7. Budget Optimization Changes

Budget optimization now uses a dedicated wrapper class for more flexibility.

Old Approach

# Old - direct method on MMM
allocation, result = mmm.optimize_budget(
    budget=1000,
    num_days=30,
    budget_bounds={"x1": [0, 500], "x2": [0, 500]},
)

New Approach

import xarray as xr
from pymc_marketing.mmm.multidimensional import MultiDimensionalBudgetOptimizerWrapper

# Step 1: Create the optimizer wrapper with date range
optimizable_model = MultiDimensionalBudgetOptimizerWrapper(
    model=mmm,
    start_date="2023-01-01",
    end_date="2023-12-31",
)

# Step 2: Define budget bounds as xarray DataArray
budget_bounds = xr.DataArray(
    data=[[0, 500], [0, 500]],
    dims=["channel", "bound"],
    coords={
        "channel": ["x1", "x2"],
        "bound": ["lower", "upper"],
    },
)

# Step 3: Run optimization
allocation, result = optimizable_model.optimize_budget(
    budget=1000,
    budget_bounds=budget_bounds,
)

# Step 4: Visualize results
fig = optimizable_model.plot.budget_allocation()

Key Differences

Aspect	Old	New
Budget bounds	Dictionary	xarray.DataArray
Date range	num_days parameter	start_date/end_date in wrapper
Plotting	mmm.plot_budget_allocation()	optimizable_model.plot.budget_allocation()

Benefits of the New Approach

1. Time-Aware Optimization: Specify exact date ranges for optimization

2. Multidimensional Bounds: Use xarray for complex constraint structures (e.g., time-varying bounds)

3. Separation of Concerns: Optimization logic is separate from the core model

8. Complete Example

Here’s a minimal end-to-end example using the new API:

import arviz as az
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from pymc_extras.prior import Prior

from pymc_marketing.mmm.components.adstock import GeometricAdstock
from pymc_marketing.mmm.components.saturation import LogisticSaturation
from pymc_marketing.mmm.multidimensional import MMM

az.style.use("arviz-darkgrid")
plt.rcParams["figure.figsize"] = [12, 7]
plt.rcParams["figure.dpi"] = 100

seed: int = sum(map(ord, "mmm"))
rng: np.random.Generator = np.random.default_rng(seed=seed)

%load_ext autoreload
%autoreload 2
%config InlineBackend.figure_format = "retina"

# Load sample data
data_url = "https://raw.githubusercontent.com/pymc-labs/pymc-marketing/main/data/mmm_example.csv"
data = pd.read_csv(data_url, parse_dates=["date_week"])

# Define channel columns
channel_columns = ["x1", "x2"]

# Optional: Define channel-specific priors (to match old default behavior)
model_config = {
    "adstock_alpha": Prior("Beta", alpha=1, beta=3, dims="channel"),
    "saturation_lam": Prior("Gamma", alpha=3, beta=1, dims="channel"),
    "saturation_beta": Prior("HalfNormal", sigma=2, dims="channel"),
}

# Create the model (new API)
mmm = MMM(
    date_column="date_week",
    channel_columns=channel_columns,
    adstock=GeometricAdstock(l_max=8),
    saturation=LogisticSaturation(),
    model_config=model_config,  # Optional: for channel-specific priors
)

# Prepare data
X = data[["date_week", *channel_columns]]
y = data["y"]

# Build model explicitly (new step)
mmm.build_model(X, y)

# Add original scale contribution variables (recommended)
mmm.add_original_scale_contribution_variable(var=["channel_contribution", "y"])

# Fit the model
mmm.fit(X, y, chains=4, draws=1_000, target_accept=0.9, random_seed=rng)
mmm.sample_posterior_predictive(X, random_seed=rng)


# Analyze results using the new plotting API

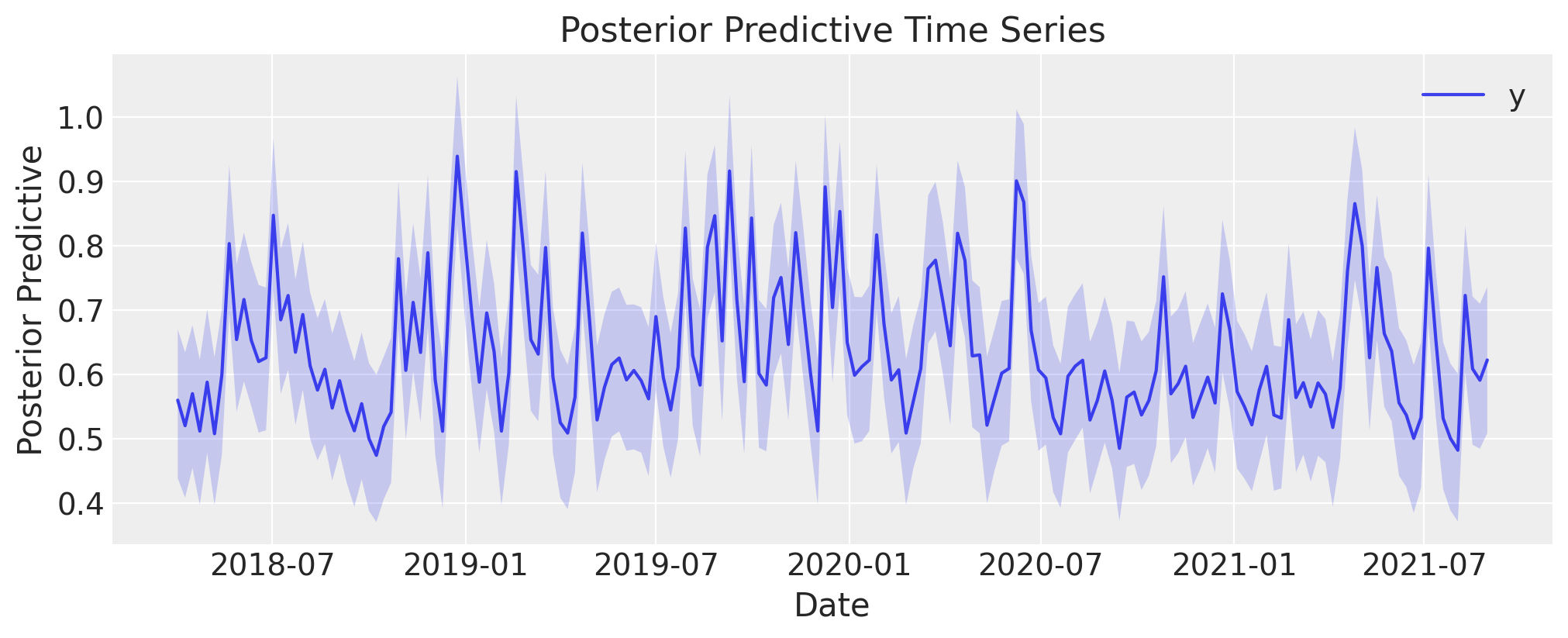

mmm.plot.posterior_predictive()

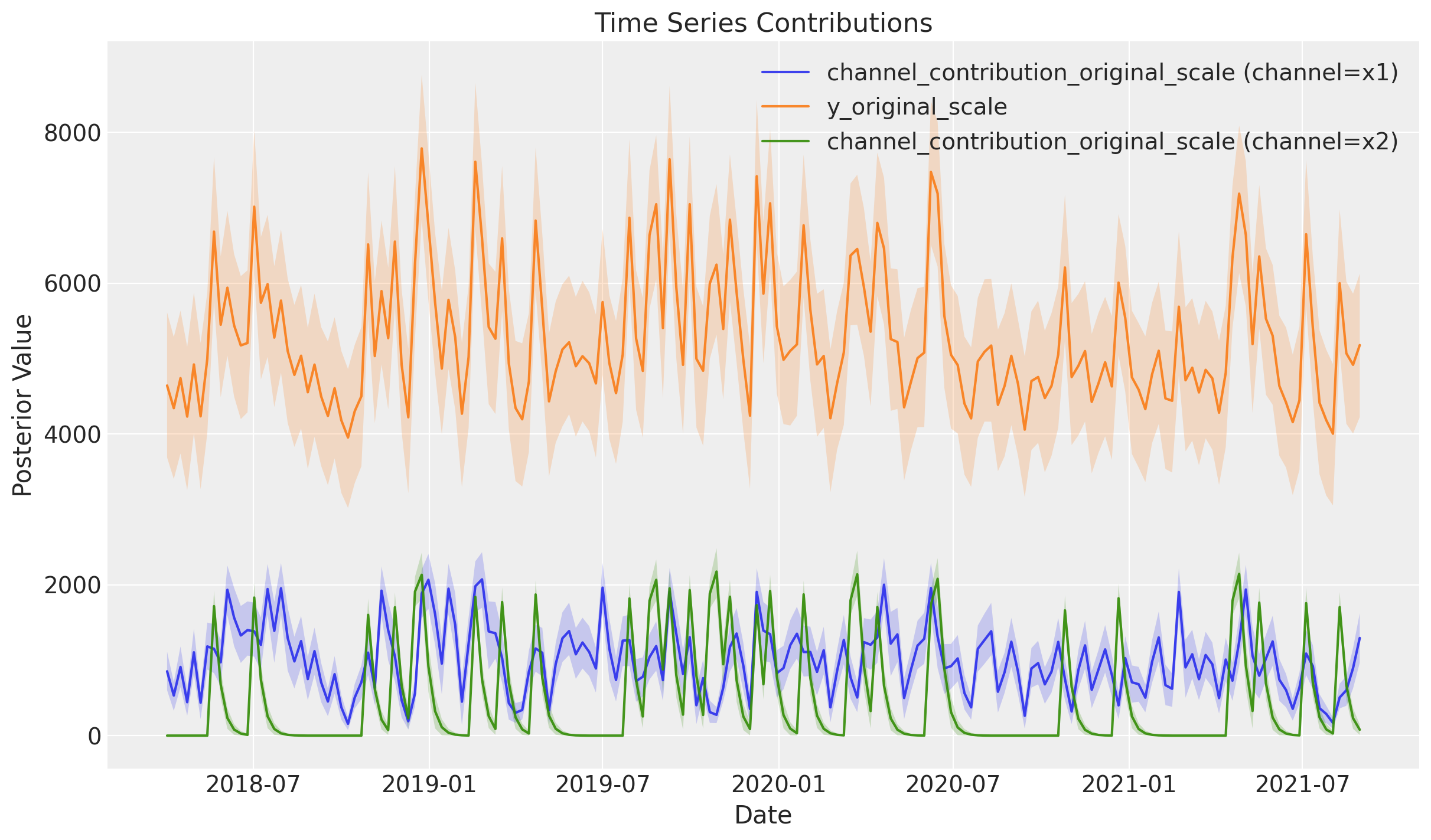

mmm.plot.contributions_over_time(
    var=["channel_contribution_original_scale", "y_original_scale"],
    combine_dims=True,
    figsize=(12, 7),
)

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [intercept_contribution, adstock_alpha, saturation_lam, saturation_beta, y_sigma]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 9 seconds.

Sampling: [y]

(<Figure size 1200x700 with 1 Axes>,
 array([[<Axes: title={'center': 'Time Series Contributions'}, xlabel='Date', ylabel='Posterior Value'>]],
       dtype=object))

10. Quick Reference Summary

Import Changes

Old	New
from pymc_marketing.mmm import MMM	from pymc_marketing.mmm.multidimensional import MMM

Model Building

Old	New
Implicit (during fit())	Explicit: build_model() then add_original_scale_contribution_variable()

Prior Defaults

Behavior	Old	New
Default	Channel-specific (dims="channel")	Total pooling (shared)
Channel-specific	Implicit	Add dims="channel" to model_config

Parameter Names

Old	New
intercept	intercept_contribution

Plotting API

Old	New
mmm.plot_*()	mmm.plot.*()
plot_components_contributions	plot.contributions_over_time
plot_direct_contribution_curves	plot.saturation_scatterplot
plot_channel_contribution_grid	plot.sensitivity_analysis

Sensitivity Analysis

Old	New
mmm.plot_channel_contribution_grid(...)	mmm.sensitivity.run_sweep(...) then mmm.plot.sensitivity_analysis()

Budget Optimization

Old	New
mmm.optimize_budget(...)	MultiDimensionalBudgetOptimizerWrapper(model=mmm, ...).optimize_budget(...)
budget_bounds as dict	budget_bounds as xarray.DataArray
num_days parameter	start_date/end_date in wrapper constructor

%load_ext watermark
%watermark -n -u -v -iv -w

Last updated: Fri, 06 Feb 2026

Python implementation: CPython
Python version       : 3.13.12
IPython version      : 9.10.0

arviz         : 0.23.4
matplotlib    : 3.10.8
numpy         : 2.3.5
pandas        : 2.3.3
pymc_extras   : 0.8.0
pymc_marketing: 0.17.1

Watermark: 2.6.0
